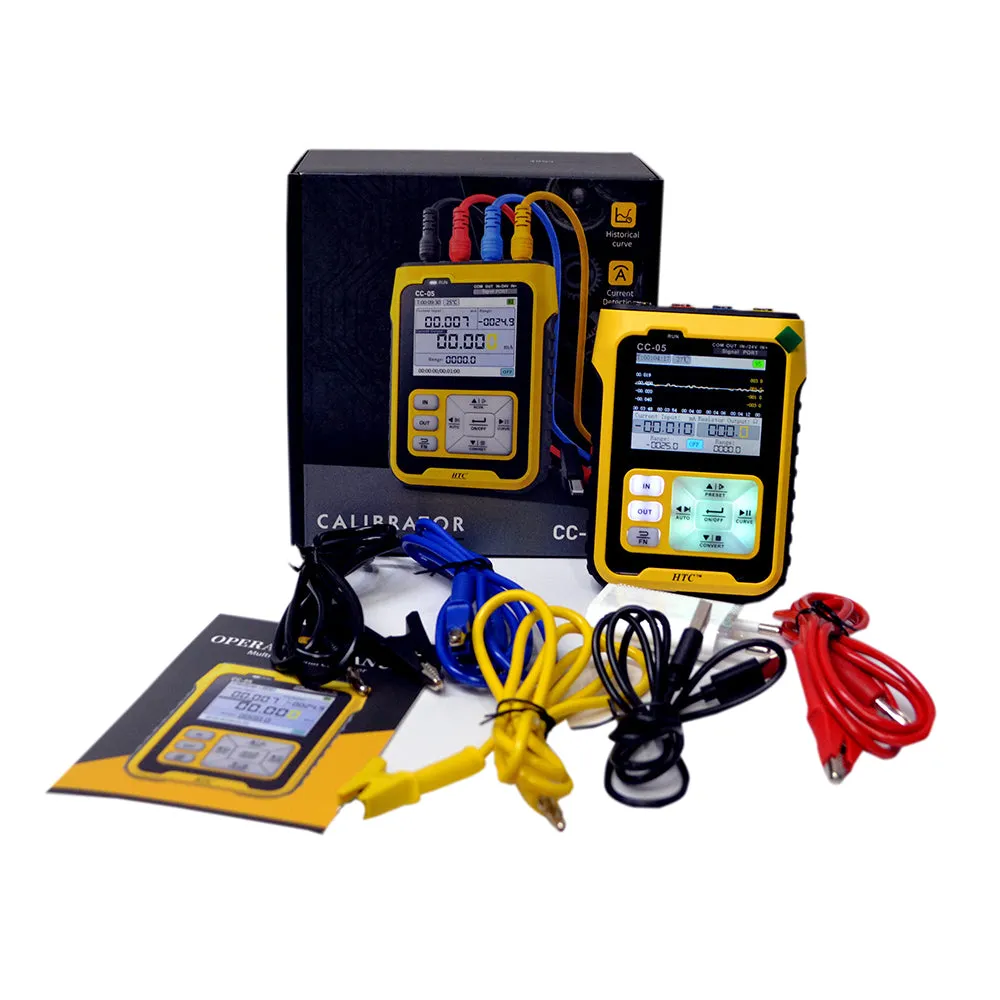

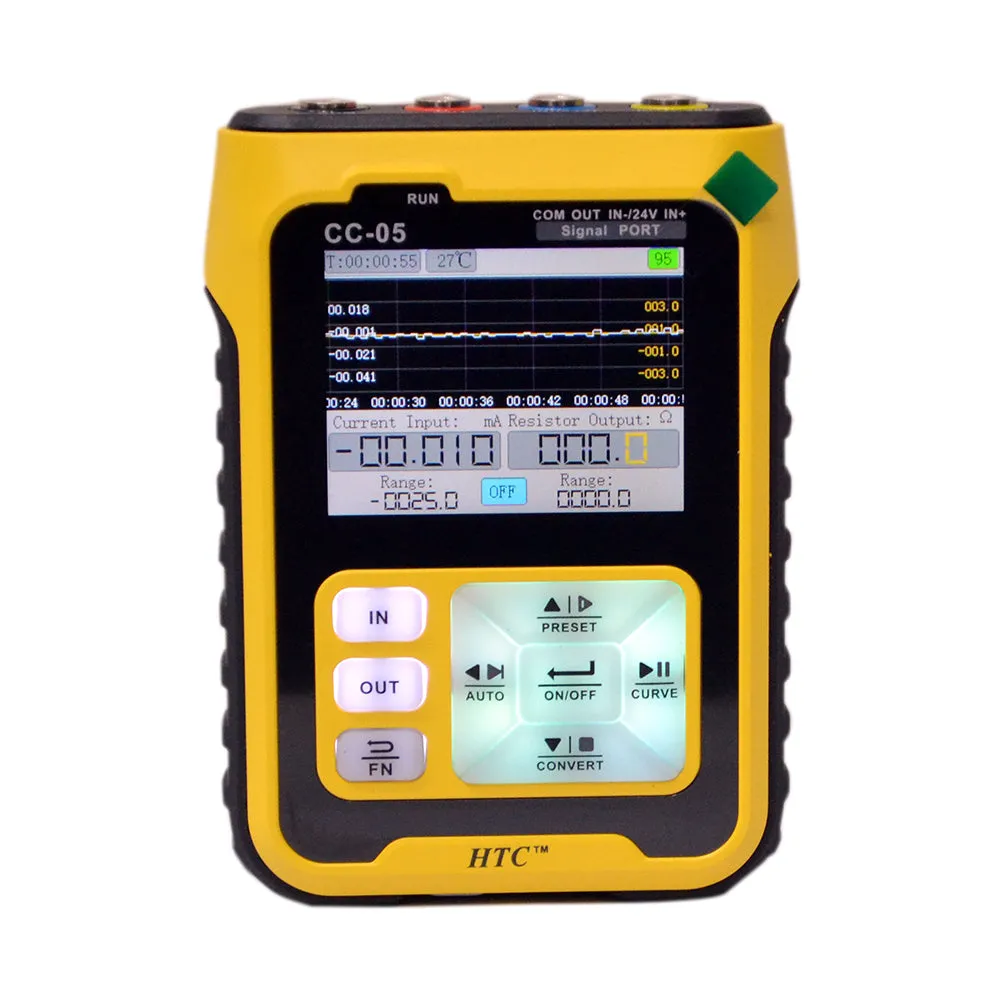

The HTC CC-05 is a versatile multi-functional calibrator designed to meet the calibration needs of professionals across various industries. It offers precise voltage and current outputs, thermocouple simulation, frequency generation, and resistance measurement capabilities, all within a compact and user-friendly design.

Key Features:

• Voltage Output: Provides a range of 0 to 24V with an accuracy of ±0.02%, allowing for precise voltage calibration.
• Current Output: Delivers 0 to 24mA with an accuracy of ±0.02%, suitable for calibrating current loops.
• Thermocouple Simulation: Supports multiple thermocouple types, including TC-S, TC-B, TC-E, TC-K, TC-R, TC-J, TC-T, TC-N, WRe3/25, and WRe3/26, with temperature ranges up to 2320°C, facilitating accurate temperature sensor calibration.
• Frequency Generation: Capable of generating frequencies from 0 to 9999Hz with an accuracy of ±2%, ideal for calibrating frequency-dependent devices.
• Resistance Measurement: Measures resistance from 0 to 390Ω with an accuracy of ±0.2%, and supports RTD measurements for Pt100 and Cu50 sensors.
• Compact Design: Lightweight and portable, making it suitable for both laboratory and field applications.
• Rechargeable Battery: Powered by a 3.7V rechargeable battery, ensuring uninterrupted operation during calibration tasks.

Specifications:

• Voltage Output: 0 to 24V DC, accuracy ±0.02%
• Current Output: 0 to 24mA, accuracy ±0.02%
• Thermocouple Simulation: Supports TC-S, TC-B, TC-E, TC-K, TC-R, TC-J, TC-T, TC-N, WRe3/25, WRe3/26 with temperature ranges up to 2320°C
• Frequency Generation: 0 to 9999Hz, accuracy ±2%
• Resistance Measurement: 0 to 390Ω, accuracy ±0.2%; RTD measurements for Pt100 (-200°C to 650°C) and Cu50 (-20°C to 150°C)
• Display: 5-digit LED
• Power Supply: 3.7V rechargeable battery
• Dimensions: 150mm (L) x 80mm (W) x 40mm (H)
• Weight: Approximately 0.5 kg

Applications:

• Process Control: Calibrating instruments in industrial settings to ensure accurate measurements.
• Laboratory Testing: Verifying the accuracy of laboratory equipment and sensors.
• Field Calibration: Portable design allows for on-site calibration of various devices.
• Educational Use: Assisting in teaching calibration techniques and measurement principles.
